How to Repair BMWMini FRM Mask 3M25J by Autel IM608

Purpose:
To repair a BMW/MiniFRM module with corrupted data usually caused by low voltage.

Now the FRM module won’t response, and electric windows don’t work.
So generally, we’ll read the EEPROM and rewrite it by Autel MaxiIM IM608.

FRM Info
Chip: MC9S12XEQ384
Mask: 3M25J

Path
On Autel IM608, go to
Programmer>>Chip (EEPROM,MCU,ECU)>>Chip read & write>>Other>>BMW>>E – SERIES>FRM>XEQ384>RW

Step 1. Read D-FLASH, EEPROM, P-FLASH

Check “Schematic diagram”.

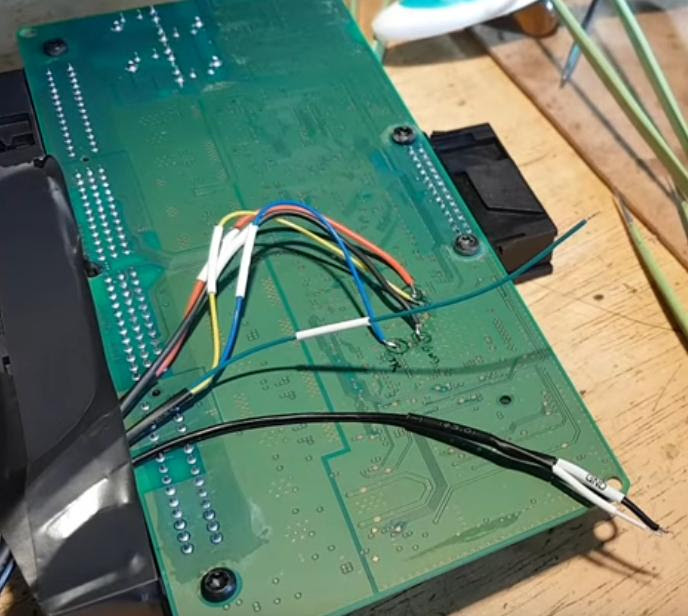

Connect APA109, IM608, XP400Pro and FRM circuit board by diagrams.

Go to “Set” to check if we’ve got 5 voltage, and turn on read/write/earse validation.
Then try to “Read” D-FLASH.
Empty, that’s why it is done.
Read Partition. Also empty.

EEPROM is also empty.
So we just read and save P-FLASH as a backup.
Usually this part is intact.

Step 2. Write partition
Go to D-FLASH and select “Write partition”. (So we can get a new EEPROM to write data in.)
Set EEPROM as 16, which will give you four kilobytes of memory on EEPROM.
Set D-FLASH as 0.

Step 3. Write EEPROM back
Then I find an EEPROM file with the same part number (3456395) on Google.

Of course this EEPROM belongs to a a different car, VIN…but it allows FRM to boot.
Transfer the data file to IM608 Key Programmer.
Go to “EEE” (EEPROM), and select “Write”.
Load the EEPROM file we just found.
Write successfully.

Go back to read D-FLASH and EEPROM.
FLASH is also empty, but we have the data in EEPROM.

Step 4 . Check FRM on car
Restore FRM back, and see if it boots well.
Use an Autel Diagnostic Tool to check windows quickly.
The wrong chassis means our FRM has communications.

Before we have a DTC about FRM error.

Diagnosis>>Control unit>>Body>>FRM2 (Footwell Module 2)>>Read codes
Now our FRM comes back.

And then the rest work is to program the module the car because it comes from a different car.
Notice: IM608 doesn’t support BMW X1 FRM program.
Credits to LM Auto Repairs.

Hope this could help.
