Autel MaxiSys Pro MS908P program Acura TSX 09 key

Keeps Autel MaxiSys Pro MS908P for some days, usually I use it for diagnosis like reading or clearing some faults. Today, I try it to program a new key for Acura TSX 2009. Work like a charm! I have to say that. MS908P with MaxiFlash Pro J2534 box to program keys like a professional key programmer, e.g. SKP900.
Here, I would share my experience of key programming for Acura TSX 2009.
items needed:
The original Acura key
8-2
A spare key to be programmed
8-3
MaxiSys pro MS908P
Autel MaxiFlash Pro J2534 ECU programming tool
My procedure to program a new Acura key
The car starts
Connect MS908 PRO and Autel MaxiFlash Pro J2534 ECU Programming Device with the car
8-4
MaxiSys pro MS908P starts
8-5
Insert the spare key and original key separately to be ON
8-2
8-7
When insert the original key, select Acura on MS908P
8-8

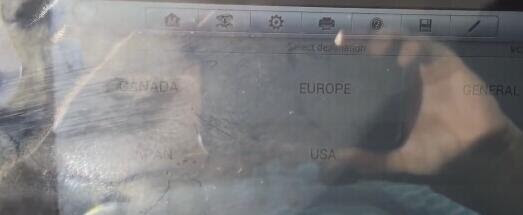

Then USA
8-9
Then Start New Session
8-10 8-11
8-12
Select Diagnosis
8-13
Then Control Unit
8-15
Then IMMOBI (immobilizer)
8-16
Keep the ignition ON until the tester directs you to turn it OFF
8-17
Program keys with a T5 stamped on the blade of the key…
8-18
Diagnostic system initializing…
Select IMMOBILIZER SETUP
8-19
Establishing vehicle communications…
Select ADD AND DELETE KEYS
8-21
Establishing vehicle communications…
Then ADD KEY
8-21
Establishing vehicle communications…
Turn the ignition switch OFF
8-22
Turn the ignition switch ON with an original key
8-23
Turn the ignition switch OFF within 17 seconds
8-24
Turn the ignition switch ON with an new key within 20 seconds
8-25
Turn the ignition switch OFF within 17 seconds
Turn the ignition switch ON within 20 seconds without changing the key
8-26
Turn the ignition switch OFF
Turn the ignition switch ON
Is the immobilizer indicator light turned OFF?
8-27
Then check the immobilizer indicator light
8-28
8-29
Turn the ignition switch ON
The registration of keys has been completed.
Turn the ignition switch OFF
http://forobd2tool.com/cheapobd2tool/wp-content/uploads/sites/3/2017/11/8-30.jpg

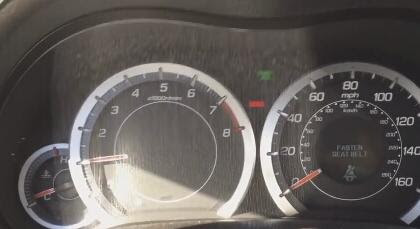

Then insert the key newly programmed to have a try and make sure that it works
8-31
Successfully programmed a Acura key with Autel MS908P and J2534 ECU programmer
